Idea of LASER (General Principles and Physics) laser

What is LASER?

LASER = Light Amplification by Stimulated Emission of Radiation.

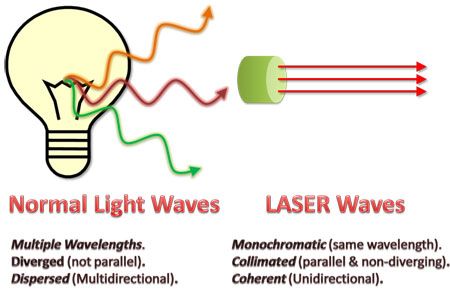

A LASER-equipped device can generate a high-intensity light that is monochromatic, unidirectional, and parallel.

Laser physics Light Amplification by Stimulated Emission of Radiation

physics of laser, laser ideas, idea laser, laser surgical applications, laser uses in medical field, laser uses in plastic surgery, laser, plastic surgery, laser hair removal, laser removal, cosmetic surgery, laser surgery, surgery laser, plastic surgeon, laser treatment, plastic surgeons, breast surgery, laser skin, reconstructive surgery, acne laser, laser cost, laser therapy, cosmetic surgeon, laser clinic, plasticsurgery, laser resurfacing, laser tattoo removal, cosmetic laser, laser acne treatment, laser facial, aesthetic surgery, breast augmentation cost, breast augmentation surgery, cosmetic plastic surgery, cosmetic surgeons, facial plastic surgery, laser electrolysis, laser lipo, laser treatments, laser vein, liposuction surgery, breast plastic surgery, ipl laser, laser hair removal cost, laser liposuction, laser scar, laser veins, medical laser, home laser hair removal, laser face, plastic surgeries, plastic surgery nose, cosmetic procedures, cost of laser, dermatology laser, laser clinics, laser scars, laser skin resurfacing, laser skin treatment, laser varicose veins, permanent hair removal laser, reconstructive plastic surgery, breast lift surgery, laser hair removal of, laser rejuvenation, laser scar removal, rhinoplasty cost, acne scar laser, laser acne scars, laser aesthetic, laser cellulite, laser remove, laser rosacea, skin and laser, top plastic surgeons, veins laser treatment, cosmetic laser surgery, laser cosmetic surgery, laser hair removal treatment, laser lift, laser vein removal, after laser hair removal, breast lift cost, cosmetic eye surgery, free plastic surgery, laser facial hair removal, laser hair removal reviews, laser peel, laser reduction, laser skin center, laser treatment for acne, laser vein treatment, buttock augmentation, cosmetic surgery before and after, good plastic surgery, laser hair removal price, laser hair removal prices, laser mole removal, laser scar treatment, laser skin rejuvenation, laser spider vein, plastic surgery procedures, tattoo removal cost, board certified plastic surgeon, ipl laser hair removal, laser acne surgery, laser acne treatments, laser hair removal clinic, laser hair removal skin, laser skin tightening, laser wrinkles, spider veins laser, acne scar laser treatment, co2 laser resurfacing, cost of laser hair removal, eyelid plastic surgery, laser dermatologist, laser hair removal face, laser hair removal review, laser hair removal training, laser plastic surgery, laser skin treatments, laser specialist, plastic surgery breast augmentation, plastic surgery institute, rosacea laser treatment, hair removal laser surgery, laser acne scar removal, laser hair removal clinics, laser hair removal equipment, laser hair removal machines, laser neck, laser surgery varicose veins, laser treatment acne scars, skin lasers, varicose vein laser treatment, acne laser resurfacing, blepharoplasty cost, cosmetic surgery photos, face laser treatment, laser eyelid surgery, laser face lift, laser hair removal before and after, laser spider vein removal, laser treatment for skin, laser treatment for varicose veins, american laser hair removal, cost laser resurfacing, cost microdermabrasion, does laser hair removal work, laser blepharoplasty, laser facial resurfacing, laser hair removal results, laser hair removal treatments, laser treatment for acne scars, laser treatment of varicose veins, laser treatment spider veins, laser vein surgery, yag laser hair removal, breast enhancement cost, cosmetic laser treatment, laser hair removal photos, laser hair removal systems, laser nose, laser vein therapy, laser wrinkle removal, about laser hair removal, advanced laser hair removal, laser hair removal facts, laser microdermabrasion, laser skin therapy, laser treatment for rosacea, laser treatment for spider veins, thermage laser, co2 laser skin resurfacing, cost of tattoo removal, information on laser hair removal, laser age spots, laser hair removal faq, laser hair removal safety, laser surgery for varicose veins, laser varicose vein removal, costs of laser hair removal, facial laser surgery, laser rhinoplasty, laser facelift, laser facial treatments, laser skin resurfacing cost, professional laser hair removal, laser medical applications, laser hair removal doctor, tattoo removal lasers, acne scarring laser treatment, laser vein treatments, prices for laser hair removal, laser skin resurfacing treatment, laser treatment for spider vein, medical applications of laser, laser hair removal advice, caddell's laser,physics of laser, laser ideas, idea laser, laser surgical applications, laser uses in medical field, laser uses in plastic surgery, laser, plastic surgery, laser hair removal, laser removal, cosmetic surgery, laser surgery, surgery laser, plastic surgeon, laser treatment, plastic surgeons, breast surgery, laser skin, reconstructive surgery, acne laser, laser cost, laser therapy, cosmetic surgeon, laser clinic, plasticsurgery, laser resurfacing, laser tattoo removal, cosmetic laser, laser acne treatment, laser facial, aesthetic surgery, breast augmentation cost, breast augmentation surgery, cosmetic plastic surgery, cosmetic surgeons, facial plastic surgery, laser electrolysis, laser lipo, laser treatments, laser vein, liposuction surgery, breast plastic surgery, ipl laser, laser hair removal cost, laser liposuction, laser scar, laser veins, medical laser, home laser hair removal, laser face, plastic surgeries, plastic surgery nose, cosmetic procedures, cost of laser, dermatology laser, laser clinics, laser scars, laser skin resurfacing, laser skin treatment, laser varicose veins, permanent hair removal laser, reconstructive plastic surgery, breast lift surgery, laser hair removal of, laser rejuvenation, laser scar removal, rhinoplasty cost, acne scar laser, laser acne scars, laser aesthetic, laser cellulite, laser remove, laser rosacea, skin and laser, top plastic surgeons, veins laser treatment, cosmetic laser surgery, laser cosmetic surgery, laser hair removal treatment, laser lift, laser vein removal, after laser hair removal, breast lift cost, cosmetic eye surgery, free plastic surgery, laser facial hair removal, laser hair removal reviews, laser peel, laser reduction, laser skin center, laser treatment for acne, laser vein treatment, buttock augmentation, cosmetic surgery before and after, good plastic surgery, laser hair removal price, laser hair removal prices, laser mole removal, laser scar treatment, laser skin rejuvenation, laser spider vein, plastic surgery procedures, tattoo removal cost, board certified plastic surgeon, ipl laser hair removal, laser acne surgery, laser acne treatments, laser hair removal clinic, laser hair removal skin, laser skin tightening, laser wrinkles, spider veins laser, acne scar laser treatment, co2 laser resurfacing, cost of laser hair removal, eyelid plastic surgery, laser dermatologist, laser hair removal face, laser hair removal review, laser hair removal training, laser plastic surgery, laser skin treatments, laser specialist, plastic surgery breast augmentation, plastic surgery institute, rosacea laser treatment, hair removal laser surgery, laser acne scar removal, laser hair removal clinics, laser hair removal equipment, laser hair removal machines, laser neck, laser surgery varicose veins, laser treatment acne scars, skin lasers, varicose vein laser treatment, acne laser resurfacing, blepharoplasty cost, cosmetic surgery photos, face laser treatment, laser eyelid surgery, laser face lift, laser hair removal before and after, laser spider vein removal, laser treatment for skin, laser treatment for varicose veins, american laser hair removal, cost laser resurfacing, cost microdermabrasion, does laser hair removal work, laser blepharoplasty, laser facial resurfacing, laser hair removal results, laser hair removal treatments, laser treatment for acne scars, laser treatment of varicose veins, laser treatment spider veins, laser vein surgery, yag laser hair removal, breast enhancement cost, cosmetic laser treatment, laser hair removal photos, laser hair removal systems, laser nose, laser vein therapy, laser wrinkle removal, about laser hair removal, advanced laser hair removal, laser hair removal facts, laser microdermabrasion, laser skin therapy, laser treatment for rosacea, laser treatment for spider veins, thermage laser, co2 laser skin resurfacing, cost of tattoo removal, information on laser hair removal, laser age spots, laser hair removal faq, laser hair removal safety, laser surgery for varicose veins, laser varicose vein removal, costs of laser hair removal, facial laser surgery, laser rhinoplasty, laser facelift, laser facial treatments, laser skin resurfacing cost, professional laser hair removal, laser medical applications, laser hair removal doctor, tattoo removal lasers, acne scarring laser treatment, laser vein treatments, prices for laser hair removal, laser skin resurfacing treatment, laser treatment for spider vein, medical applications of laser, laser hair removal advice, caddell's laser
History of Using LASER in medical field!

- The ruby LASER was the first medical LASER when it was used in 1963 to coagulate retinal lesions. Other substances were found that could serve as the active medium of a LASER device. Many substrates, especially rare earth elements such as erbium (Er), gadolinium (Gd), holmium (Ho), praseodymium (Pr), thulium (Tm), uranium (Ur), and ytterbium (Yb), have been used successfully.
- The first gas LASER, which was also developed in 1961, used a mixture of helium and neon. Its red color allowed it to be used as an invisible LASER. Currently, it is used to relieve pain and promote wound healing.
- In 1962, the argon LASER was developed. This LASER emitted energy in the blue-green portion of the electromagnetic spectrum. Energy with wavelengths in this part of the spectrum is more readily absorbed by 2 naturally occurring chromophores (absorbing pigments) in the human body-melanin and hemoglobin-than by the surrounding tissue

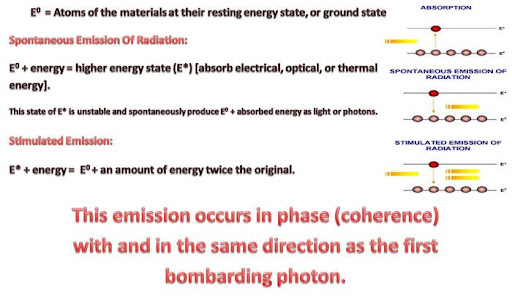

The Physics of Medical LASER!

Physics of Medical LASER

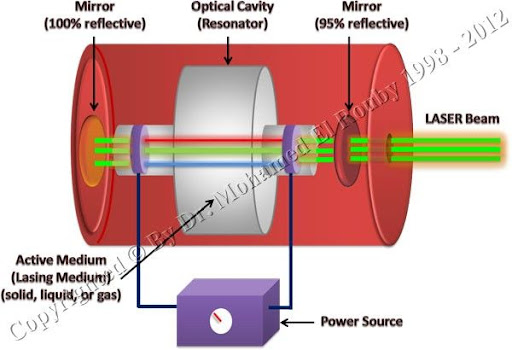

Basic Components of Medical LASER!

The basic LASER device consists of 3 components:

(1) an active medium, or lasing medium; may be a solid, liquid, or gas. Different active media emit different energies or wavelengths of light.
(2) an optical cavity, or resonator; contains an active medium. At each end of the resonator, parallel reflectors or mirrors are placed facing each other. The front of the output mirror is designed to be partially reflective. It reflects only a portion of the light impinging on it, allowing some portion of the total energy or light to escape. The rear mirror is a total reflector that reflects 100% of the energy impinging on it.
(3) an energizing source, or pump, provides the energy (thermal, electric, or optical [e.g. a flash lamp]) for absorption by the active medium.

Basic Components of Medical LASER



Mechanism: energy pump activates the active medium lead to spontaneous emission of photons. Some of these photons are reflected back and forth between the 2 mirrors. At the front output mirror, a portion of the energy is permitted to escape. This energy is in the form of an intense beam of monochromatic (same wavelength), collimated (parallel, nondiverging), and coherent (same direction) = LASER.


LASER Beam Properties (Measurements):

- Energy is proportional to the number of photons and is measured in joules (J).
- Power the rate of delivery of the energy, is measured in watts (W) where: 1 W = 1 J/Sec.
- Irradiance = power per unit area and is measured in W/cm2.
- Fluence = the energy delivered per unit area and is measured in J/cm2.

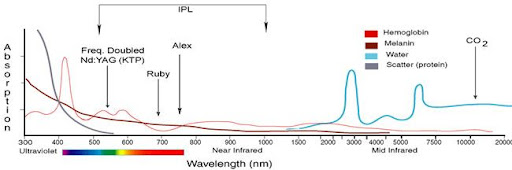

Types of LASER(Wavelength):

- The effect of light on skin depends on the wavelength of the light.
- Light in the UV region (100-400 nm), invisible, cause deleterious effects such as erythema, hyperpigmentation, and skin tumors.
- Light energy in the visible spectrum (380-700 nm) is mostly innocuous, but it can be absorbed and cause thermal damage when it is delivered to the skin at a high intensity.
- Light in the near IR region of the spectrum (780-3000 nm), also invisible, causes skin and retinal defects.

Types of LASER

- Because the LASER is monochromatic and because it has a very narrow bandwidth, it permits selective targeting of chromophores in the tissue for treatment. This property is one of the underlying principles of selective photothermolysis (SP).

- Chromophore: is a chemical substance of the molecule that give it its color. i.e. Hemoglobin and melanin are natural endogenous chromophores while Tattoo ink is exogenous chromophore.

- The degree of absorption and its thermal effect on skin vary with the amount and type of chromophores that are present in the recipient.

- Different chromophores have different absorption coefficients =”a measure of the degree of absorption by the chromophores at a particular wavelength”.

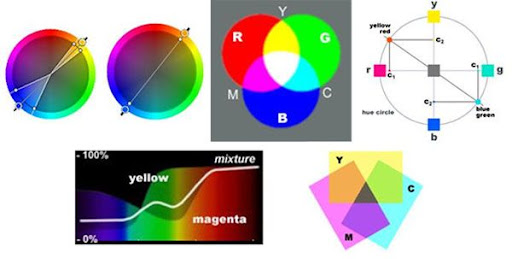

Complementary Colors and subtractive color mixing:

Newton's hue circle completely requires that every spectral hue will have a single spectral opposite (or mixture of two opposite spectral hues) that can combine with it to create white light.




Complementary Colors and subtractive color mixing


- Newton stated the definition of complementary colors that is still used today: any two hues that, mixed in the right proportions, produce a "faint anonymous" neutral (pure white, gray or black) color. (i.e. yellow + blue and red + green).

- Light color mixing is different from color mixing in substances: three monochromatic lights (blue 460nm, green 530nm and red 650nm)

- How do we determine the exact complementary color for any color we choose? The simplest way is to determine quantities of the two opponent processes that determine the chosen color (redC1 + yellowC2)=(orange), then identify the color that is produced if we apply the same quantities to the opposing process hues (greenC1 + blueC2) = (greenish blue) .

- subtractive color mixing: A subtractive mixture absorbs all light wavelengths that each colorant absorbed by itself. There is one general rule we can rely on, however "When we materially mix paints, dyes or filters, we do not increase their light reflecting (transmitting) behavior but their light absorbing behavior".


Selective Photothermolysis Theory:

- In 1983, Anderson and Parrish described the theory of Selective Photothermolysis (SP) is a method for localizing tissue damage to specific chromophore targets at the cellular level; therefore, it can be used to minimize undesired thermal damage to the surrounding tissue caused by thermal diffusion.

- The mentioned LASER parameters [power density, fluence, and wavelength] are the fundamental principles in the operation of medical Lasers in the concept known as SP.

Thermal Relaxation Time (TR): the time required for a given heated tissue to lose 50% of its heat through diffusion.

- Therefore, if the duration of the LASER pulse is less than TR of the target tissue then thermal diffusion is less and also the non effective thermal damage to the surrounding tissues.

- It is measured in terms of the area (r =radius of target area) affected and the thermal diffusivity (D) of the target tissue, as follows:
                                                         TR = r2/4D

proper SP


MODES of LASER: CONTINUOUS WAVE (CW), PULSED, and Q SWITCHING:

- A Continuous-Wave (CW) LASER: continuously pumping energy into the active medium to achieve an equilibrium between the number of activated atoms and the number of photons emitted. The duration of a CW LASER pulse is approximately 0.25 second.

- Pulsed LASER: deliver high-energy beams in very short pulses in range of milliseconds without the use of a shutter.

- Q-Switch LASER: Both types of can be further modified to produce even shorter pulses, usually in the range of 10-250 nanoseconds.


Skin Optics:

Light that directed to the skin may be reflected, transmitted, scattered, or absorbed at each layer. Only absorbed light produces tissue effects.

- The epidermis reflects approximately 4% to 7% of visible light that encounters the skin.
- The dermis predominantly scatters light because of the dense collagen content.
- Within skin, there are endogenous and exogenous chromophores.

- Absorbed light energy can produce thermal, mechanical, and chemical changes in skin:

- Thermal effects: range from protein denaturation to vaporization and carbon formation.
- Chemical reactions: produce chemically reactive excited state molecules, as in photodynamic therapy.
- Physical or mechanical “photoacoustic changes”: is caused by rapid thermal tissue expansion, creating pressure waves that fragment pigment particles in the dermis.


Applications of LASER in Plastic Surgery Field!

 For those who are considering Any Laser Treatment, they should consider:
- Who will perform the treatment?
- Which exact device will be used?
- The setting in which they intend to undergo the procedure.
- And, especially, what is the training level of the team that's going to be doing the procedure?


Laser Type

Wavelength (nm)

Color

Chromophore

Application

Argon

488/514

Blue

Melanin & hemoglobin

Vascular lesions

Long Pulsed dye

510

Green

Melanin

Pigmented lesions
Tattoo removal

KTP/double Ferq Nd:YAG

532

Green

Melanin & hemoglobin

Pigmented lesions
Vascular lesions

SmartLipo

Copper vapor

578

Greenish-yellow

Melanin & hemoglobin

Pigmented lesions
Vascular lesions

FLPPD

585

Greenish-yellow

Melanin & hemoglobin

Vascular lesions

Long pulse

595-600

Greenish-yellow

Melanin & hemoglobin

Leg Spider veins

Ruby, Q-switched Long pulse

694

Red

Melanin

Pigmented lesions
Hair removal

Q-switched Alexandrite

755

Red

Melanin & hemoglobin

Pigmented lesions
Tattoo removal

Nd:YAG

1064

Mid-Infra Red

Melanin & hemoglobin

Pigmented lesions
Deep vascular

SmartLipo

Q-switched YAG

1064

Mid-Infra Red

Melanin & hemoglobin

Pigmented lesions
Tattoo removal

Er:YAG

2940

Infra Red

Protein (Scattered)

Skin resurfacing

CO2

10600

Infra Red

water

Cut/coag Surgery
Skin resurfacing
